Product Name：

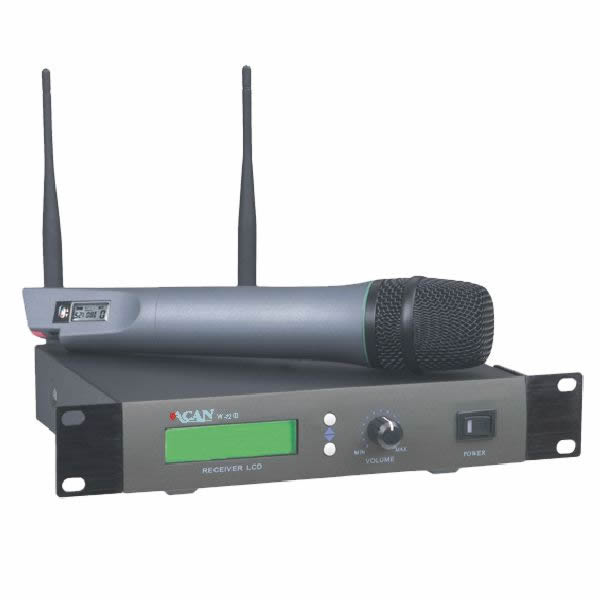

Wireless Microphone
Item No.：
W-1200
System
Model: UHF
Carrier Frequency Range:700-900 MHz
Amdio Frequency Response:50Hz-16KHz
Dynamic Range:≥60dB
System Distortion:≤1%
Signal-to-Noise Ratio:≥60dB
Operating Range:apr.50m
Operating Temperatue Range:5℃-4.5℃
Transmitter
Frequency Stability:±0.005%
RF Output Power:≤30mW
Spurious Rejection:>40dB
Modulation Mode:FM
Maximum Deviation Range:±75KHz
Microphone Mode：Dynamic
Pre-Emphasis:50μS
Power Supply:9V Batt
Current Consumption:<30mA
Dimensions:Ф37X 250mm 90X60X25mm
Weight：Appr.210g(No Batt) Appr.65g(No Batt)
Receiver
Sensitivity(S/N=30dB):<2μV
Image Rejection:>40dB
De-Emphasis:50μS
Audio Output Impedance:600Ω
Audio Output Level:0-0.5V
Power Supply:AC220-240V 50/60Hz
Function Distance: 100M
