| Product Name： |

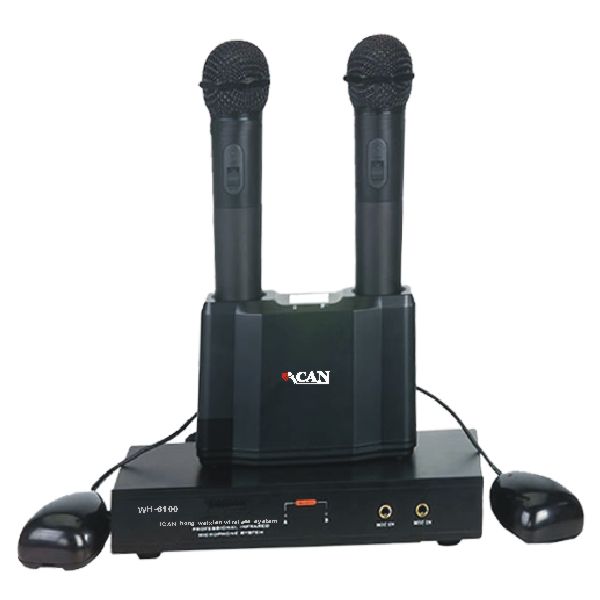

Infrared wireless microphone |
Item No.： |
WH-6100 |
|
Internal infra-red sensors, and external dual infrared sensors. Receive stronger.
Surcharge Mount to Block can be directly
Efficient multiple infrared optical receiver array best reception Two-color LED indicator power and electricity
Single point to the first dynamic sound quality good
Special anti-collision steel nets first
Special zinc alloy holding.
Particularly applicable to the family, KTV box, karaoke OK entertainment,
meeting rooms and a large amount of small space occasions use.
Using compression, extension circuits, PLL circuit, the pure sound quality,
broad range.
Technical parameters
Transmitter Transmitter
Voltage Working Voltage: DC2-3V
Working Frequency rates are frequently: A: 2.08MHz B: 2.54MHz
Time Continous working Time: 5hr
Battery 2 ⅹ AA Rechargeable Batteries
Receiver
Power consumption 7VA
Audio Output Audio Output: 600 Ω/300 mV
S / N ratio:> 100dB
Frequency Response frequency response: 45Hz-15KHz ± 3dB
Working Distance (formard):> 10m
External power supply with dedicated Rectifier: Input voltage:
AC.220V 50Hz Output Voltage: 15 V 500Ma
Working Range scope of work:> 30m ²
Chargers Set
Input voltage AC 220v/50Hz
Charging voltage : DC3.2V
Charge current: DC350 Ma Χ2
Charging time : about 8 hr |
|
|
 |
|
|
