| Product Name： |

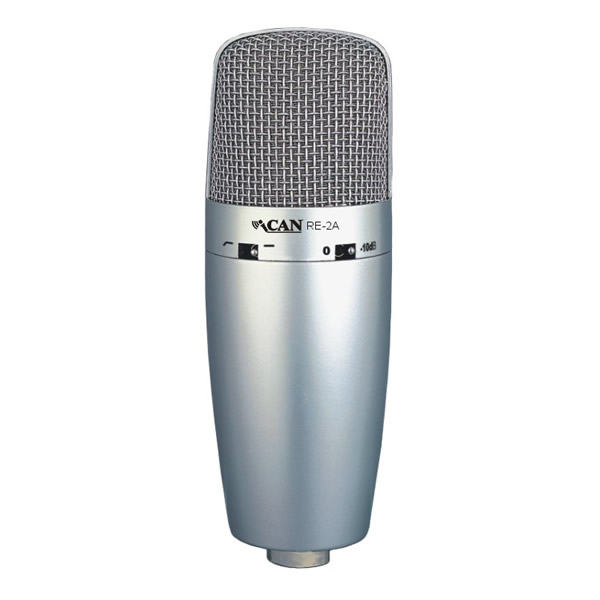

Broadcasting&recording microphone |
Item No.： |
RE-2A |
|
RE Seires Broadcasting&recording condenser microphone
multiple polar pattern(Uni/Omni)
gold-plate diaphragm capsule-to assure low self-noise, high output and
the accurate reproduction of even the subtlest sounds, especially high
frequency signals not easily reproduced by conventional large diaphragm
condenser transducers
switchable 10dB built-in(nominal)pad and low frequency attenuation-to enable easy handling of very high sound pressure levels and the successful
reduction of the pickup of low frequency ambient noise (especially common while
on-stage performing)
undistorted reproduction of high sound pressure level signals at all frequencies
integrated three stage mesh grille-to protect the microphone from accidental
damage and reduce plosives and breath noise
standard XLR-3P(F) connector-to match all kinds of audio equipment
applications:
TV studios, recording studios, broadcasting stations, stage performances,
percussion and guitar recording
Transducer Principle: Pressure Gradient Combination
Polar Pattern: Uni/Omni
Frequency Response: 20Hz-20kHz
Sensitivity: -32dB/-35dB±2dB(0dB=1V/Pa at 1kHz)
Output Impedance: 200Ω±30% (at 1kHz)
Max. Input SPL: 130dB (at 1kHz ≤1% T.H.D)
140dB (with 10dB pad)
S/N Ratio: 75/72dB
Power Requirement: 48V Phantom
Accessories: Windscreen,The shock mount |
|
|
 |
|
|
